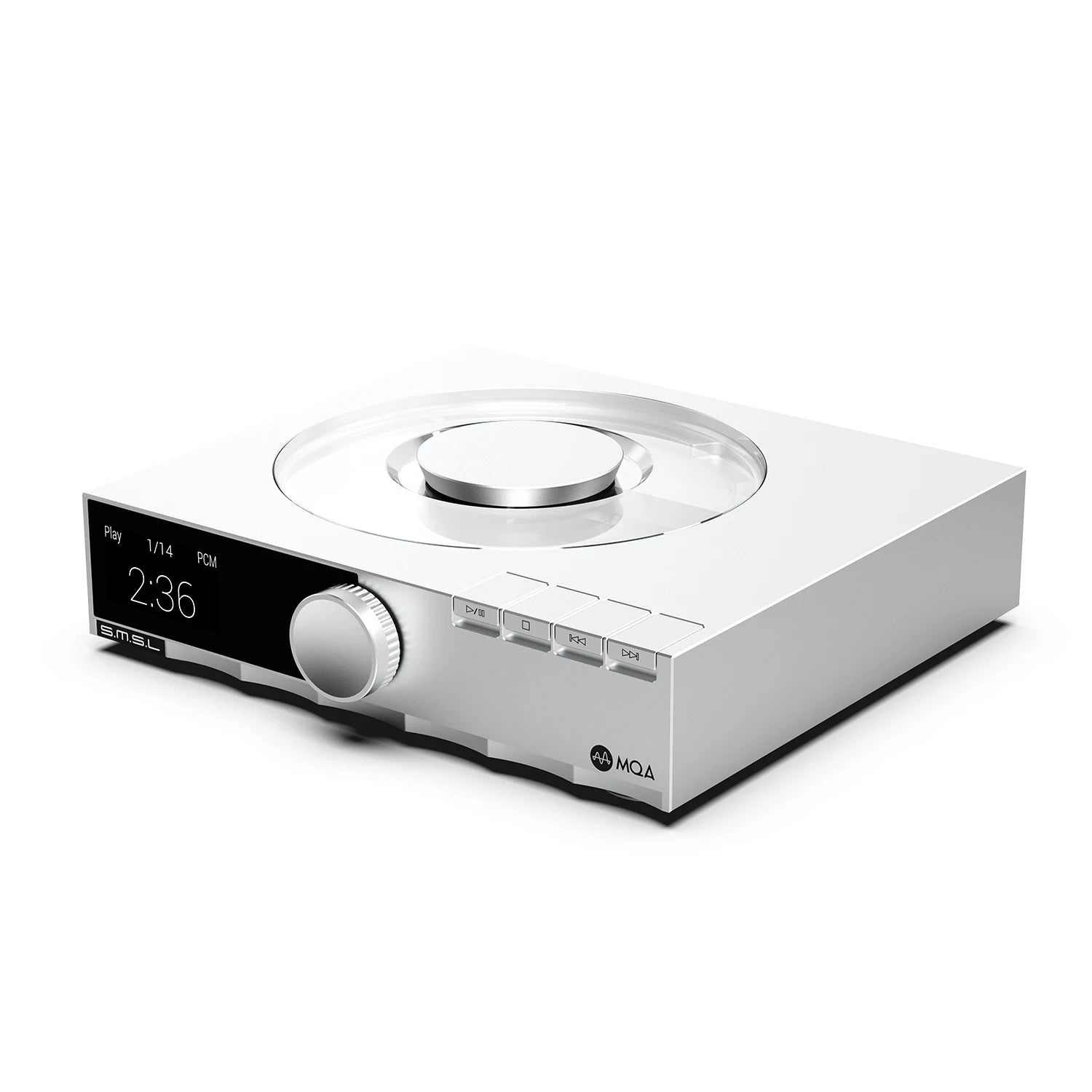

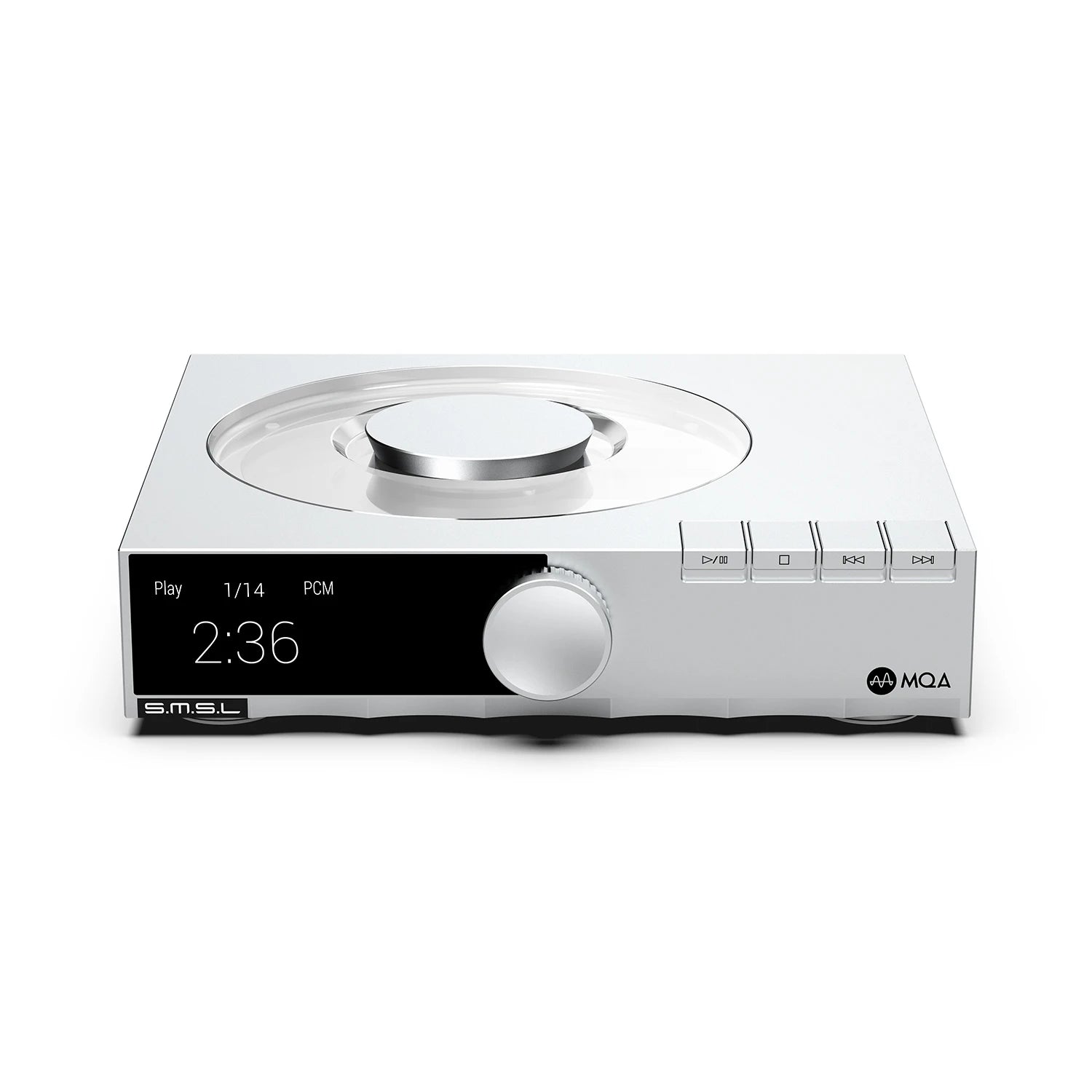

SMSL PL200T Reference MQA-CD Digital Transport
Sculpting the ultimate digital domain. A reference-grade pure digital CD transport and USB DDC interface, featuring the self-developed P.A.S.S. servo engine, external clock synchronization, and a triple-mode power layout.
Six Core Pillars of Digital Purity
P.A.S.S. Servo System
Precision Access Servo System ensures absolute tracking accuracy and mechanical anti-vibration.
Master Clock BNC Input
Supports 10MHz and 44.1kHz external word clock inputs with selectable 50Ω/75Ω impedance.
Reference Digital Suite
Equipped with high-performance Coaxial, Optical, I2S (HDMI), and balanced AES/EBU outputs.
Asynchronous USB DDC
Acts as a reference USB interface via XMOS XU-316, outputting up to 32bit/768kHz and DSD512.
Triple Power Supply
Features three isolated power paths: AC 100-240V, DC 5V/1A linear, or direct USB host power.
All-Aluminum CNC Body
Precision-milled aluminum alloy enclosure with a highly luxurious tempered glass front panel.
The Purity of Digital-Only Architecture
Eliminate DAC crossover noise and thermal interference completely. The SMSL PL200T digital transport is designed with a pure digital-only philosophy—there is no built-in DAC. By separating the digital laser decoding stage from analog conversion circuitry, the PL200T isolates the digital bitstream, feeding pure, uncompromised raw data to your external high-performance reference DAC without electromagnetic or thermal pollution.
Unshakeable Laser Tracking: Self-Developed P.A.S.S. Servo

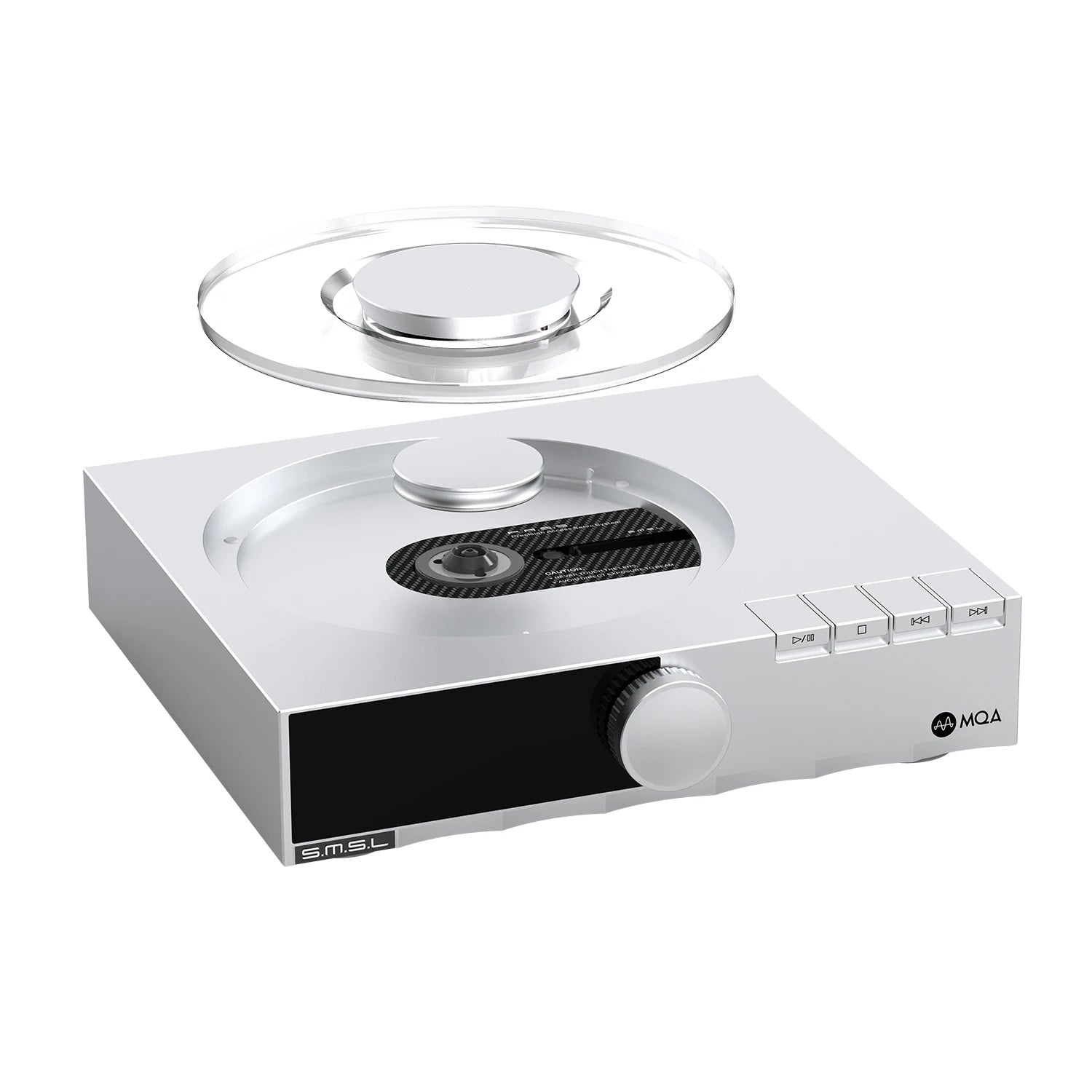

Physical stability is the foundation of digital coherence. Incorporating SMSL’s self-developed Precision Access Servo System (P.A.S.S.), the PL200T delivers reference-grade mechanical anti-vibration performance. By securing your disc with the custom heavy-duty CD stabilizer clamp under a top-loading tempered glass lid, the mechanism isolates the CD platter from environmental resonances, ensuring exceptionally precise real-time optical tracking.
Synchronized Master Timing: 10MHz Clock Alignment
Unify your digital audio domain. The PL200T houses two ultra-low phase noise femtosecond crystal local oscillators. To further eliminate timing jitter, a reference BNC input supports standard 10MHz master clock or 44.1kHz word clock inputs. By slaving the CD transport directly to an external clock generator (such as the SMSL G1), you can synchronize your entire digital source stack with perfect phase coherence before the signal reaches your DAC.
Power Supply & Digital Topology
The PL200T implements an incredibly versatile power isolation architecture, supporting three separate pathways to completely isolate digital noise:
Powered via the built-in, low-noise switching power supply module. Simply connect the standard AC power cable directly to your home wall outlet for easy and safe daily operation.
For pure, reference-level performance, bypass the AC supply by connecting an external 5V/1A low-noise DC linear power supply to the dedicated DC input port, isolating mains hum completely.
When connected to a computer via USB to use the asynchronous DDC digital interface function, the PL200T can draw stable operating power directly from the host USB connection port.
Frequently Asked Questions
Does the PL200T have built-in analog outputs (RCA or XLR)?
No, it does not. The PL200T is a pure digital CD transport and asynchronous USB digital interface (DDC) with no internal DAC stages. It outputs only digital audio signals (via I2S, AES/EBU, Coaxial, or Optical) and must be connected to an external high-resolution DAC.
Can I connect the PL200T to an external master clock?
Yes. The rear panel features a dedicated BNC Clock Input port. It supports external standard 10MHz clock signals or 44.1kHz word clock inputs, allowing you to synchronize the PL200T directly with reference master clock generators like the SMSL G1.
Can I connect both AC and DC power inputs at the same time?
No, please do not. To prevent ground loops, electric hum, or potential damage to the internal power regulation circuits, only connect either the standard AC mains power cable or an external DC power supply at any given time.
What is the "Lidless Playback" mode on the PL200T?
The PL200T supports an open-lid playback mode. By removing the top cover and placing only the custom CD stabilizer clamp onto the disc, you can initiate playback directly by holding down the Play/Pause button on the front panel, letting you visually appreciate the rotating disc like a premium turntable.
Does the PL200T support MQA-CD playback?
Yes, it natively supports MQA-CD decoding. It can unfold the master-level MQA stream internally, outputting the fully unfolded high-resolution digital audio signal over Coaxial, Optical, or AES/EBU to your external MQA-compatible DAC.
SMSL PL200T Specifications
| Parameter | Details |
|---|---|
| Input Modes | USB Audio / CD Player (Top-Loading Slot) |
| Output Interfaces | Coaxial / Optical / AES/EBU / I2S (HDMI) |
| USB Audio Specification | USB 2.0 Asynchronous (XMOS XU-316 Core) |
| I2S Output Sampling Rates | PCM: 44.1 ~ 768kHz (32bit) DSD: 2.8224 ~ 22.5792MHz (DSD512) |
| Coaxial / Optical / AES Output Rates | PCM: 44.1 ~ 192kHz (24bit) MQA: 8x Unfolding (up to 384kHz, auto-converts to 192kHz due to SPDIF limits) |
| Clock Input Specification | Frequency: 44.1kHz or 10MHz Impedance: 50Ω or 75Ω (Selectable) Waveform: Square wave or Sine wave |
| Power Consumption | 15W (Standby power <0.5W) |
| Power Input Compatibility | AC: 100V ~ 240V, 50/60Hz DC: 5V / 1A (Requires 5.5 x 2.1mm plug) |
| Dimensions & Weight | 200 x 42 x 175 mm (WxHxD) | 1.62kg (3.57lbs) |
In the Box
Every SMSL PL200T package includes a comprehensive set of accessories, allowing you to connect and synchronize your reference digital system immediately:
- SMSL PL200T Reference MQA-CD Digital Transport
- Custom Heavy-Duty CD Stabilizer Clamp
- Full-Function Remote Control
- AC Power Supply Cable (Matched to destination country)
- USB A-C Cable
- Warranty Card
- User Manual
